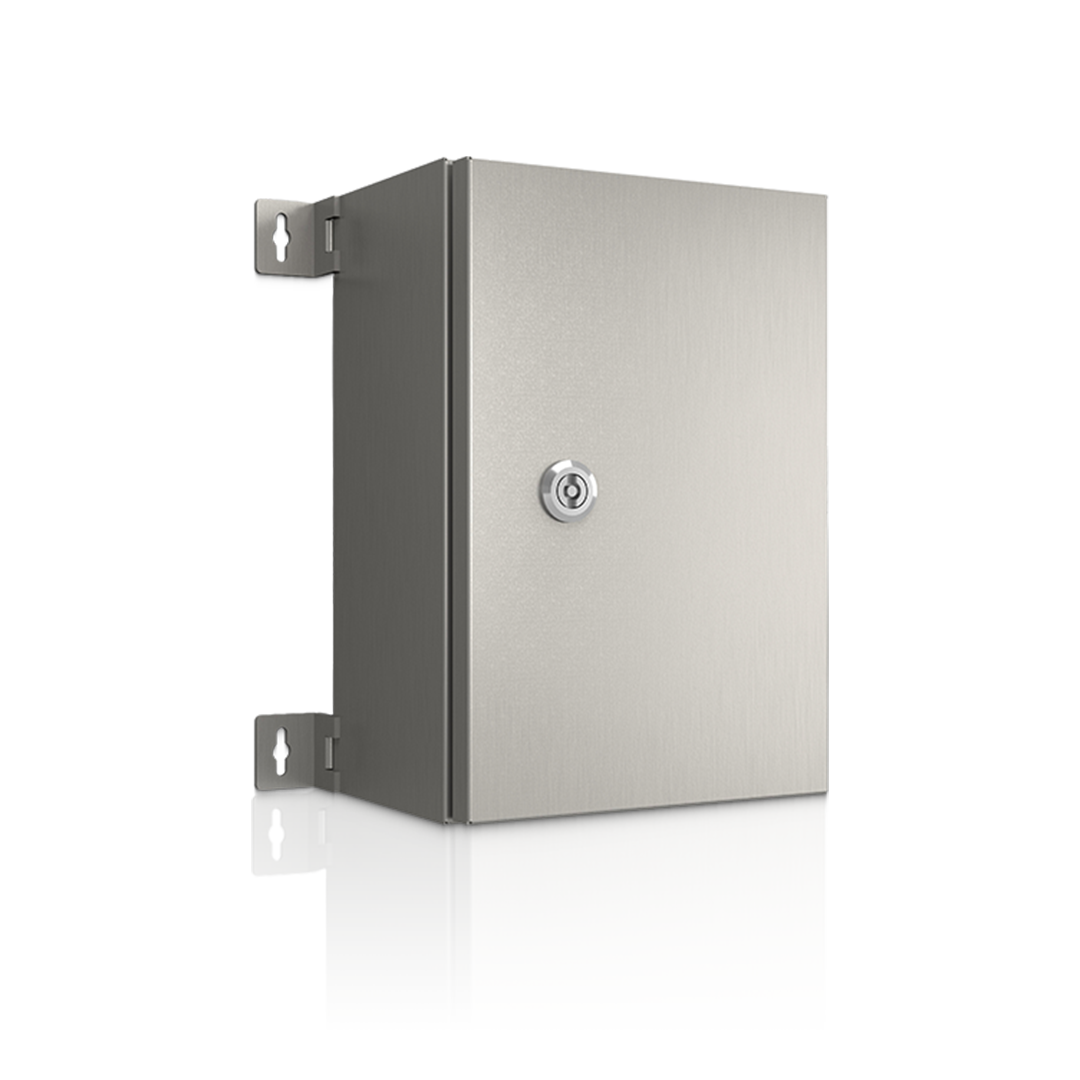

304 STAINLESS STEEL Electrical Enclosures
Essential Enclosures. Built to Standard.

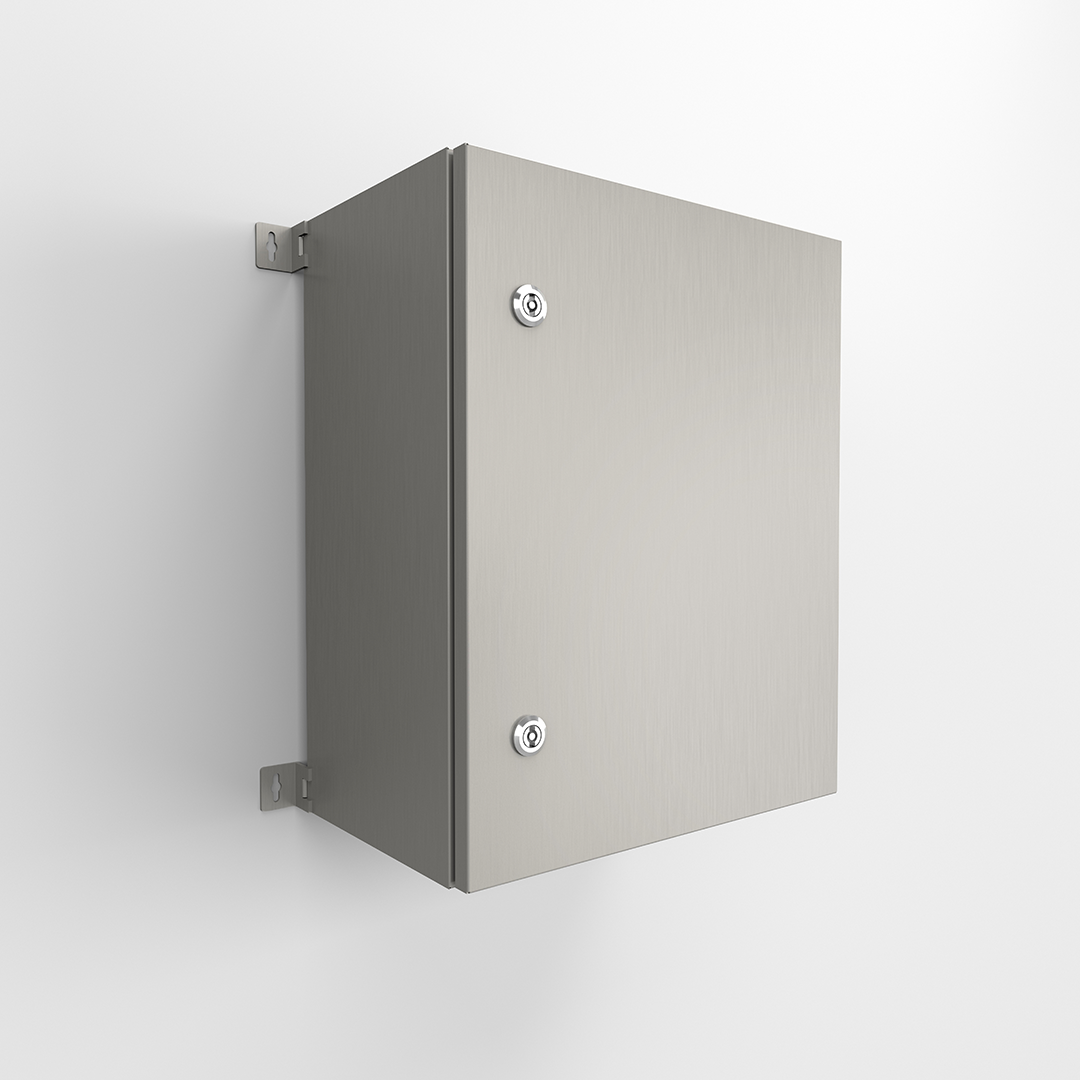

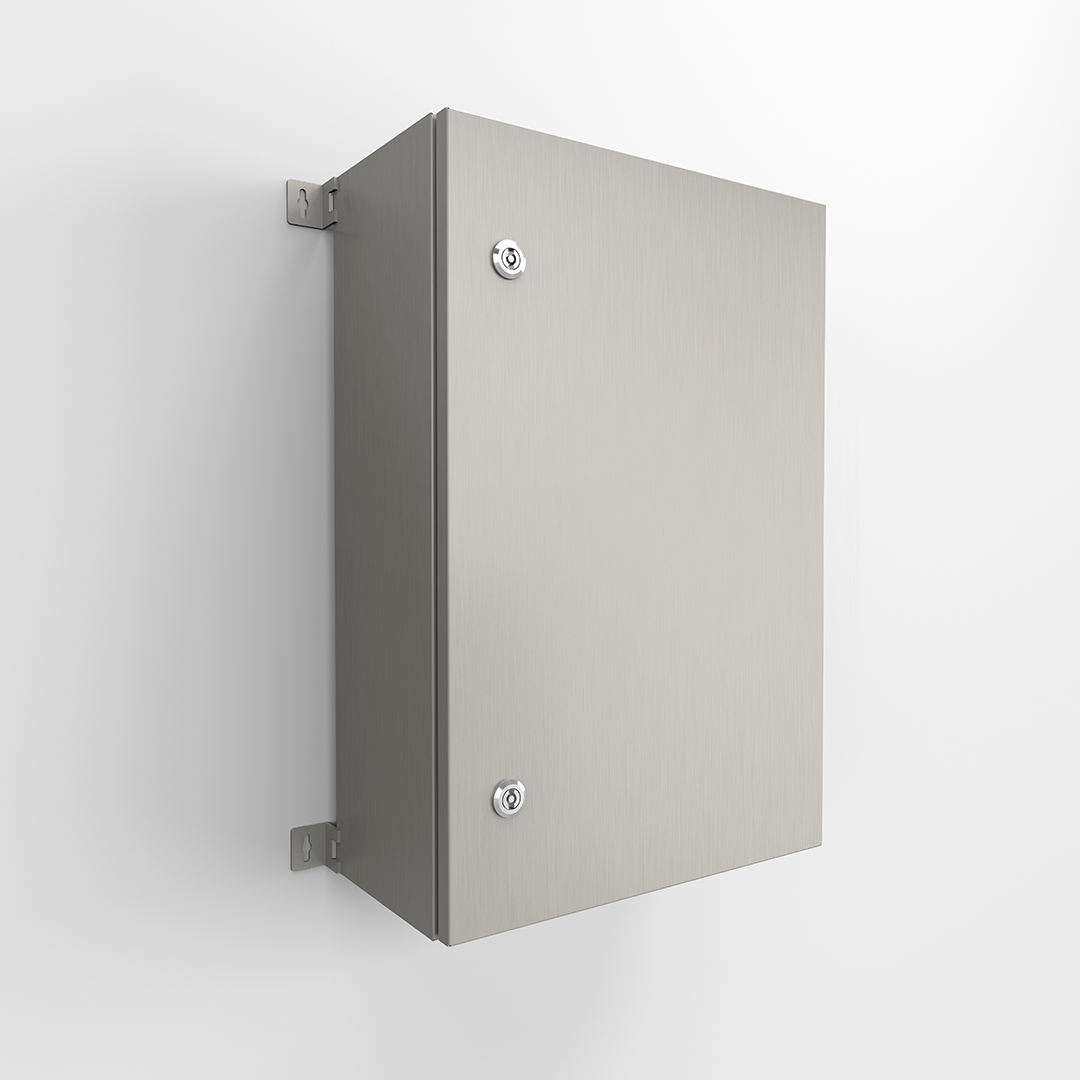

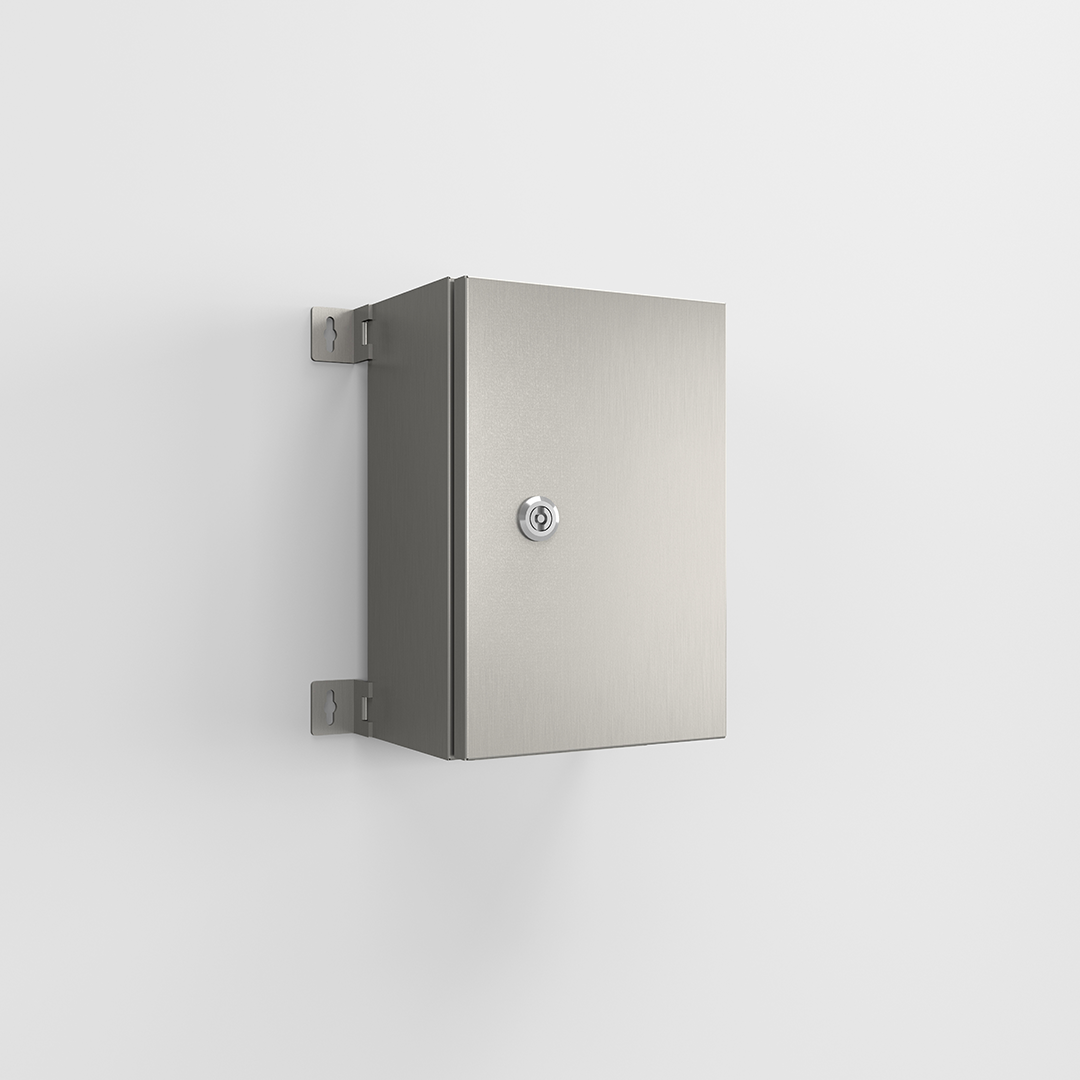

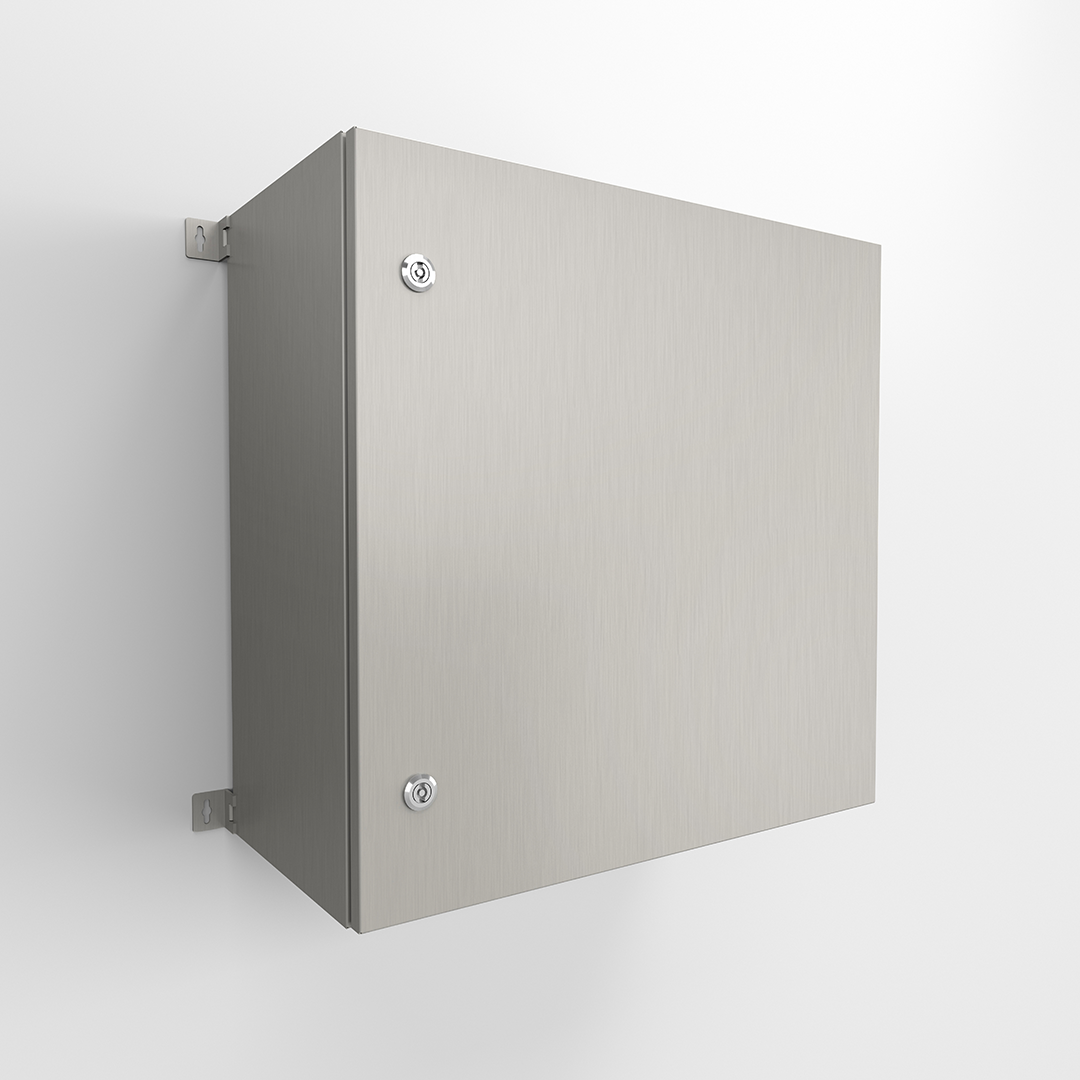

VERSCH 304 Stainless Steel Wall-Mount Electrical Enclosures deliver dependable IP66 IK10 protection for everyday electrical and control applications. Manufactured in 304L stainless steel with a continuous formed polyurethane gasket seal and secure quarter-turn locking — certified to IEC/EN 60529 and IEC/EN 62208.
Suitable for general industrial control, HVAC interfaces, pumps and irrigation, lighting and signage, and small PLC/IO applications.
Overview
Key Benefits & Applications
Construction & Materials
Ratings & Compliance
SPECIFIER INFORMATION
Key benefits
- IP66 protection for dust-tight and powerful water-jet environments
- Value-engineered construction
- 1.5mm grade 304L stainless steel
- Continuous PU gasket for reliable sealing
- Universal wall mounting brackets and gland plates
- Common sizes
Typical applications
Switching and protection | Small PLC/IO | Power supplies | Drives | HVAC interfaces | Pump and irrigation controls | Lighting and signage | General industrial control
Construction & materials
- Body & door: Electro-galvanised steel, fully welded body, removable door
- Finish: 4B finishing which equals to 0.4 to 0.8 μm
- Gasket: Polyurethane (continuous)
- Locks & hardware: Quarter-turn latches (key insert); concealed hinges; earth studs to body and door
- Mounting Plate: Galvanised steel device plate
- Gland Plate: Removable gland plate
- Fixing: External wall-mount brackets
Ratings & compliance
- Ingress protection: IP66 to IEC/EN 60529
- Impact resistance: IK10 suitable for general industrial use
- Empty enclosure standard: IEC/EN 62208
Talk to our technical team
Let’s help you specify faster, better — for 24/7 reliability.
