VPS Series
DIN-Rail Power Supplies
Meticulously engineered. Industrially proven.
Dependable performance, meeting strict international EMC and safety standards—where it matters most.
• Up to 88.5% efficiency for reduced heat and energy loss
• Slim DIN-rail mount design for space-constrained panels
• Certified to UL61010, IEC/EN62368-1, EN 55032 Class B
• Wide input range: 90–264 VAC / 127–370 VDC
• Built-in protection: short circuit, overload, overvoltage, over temp
• Operates from -20°C to +70°C in industrial environments

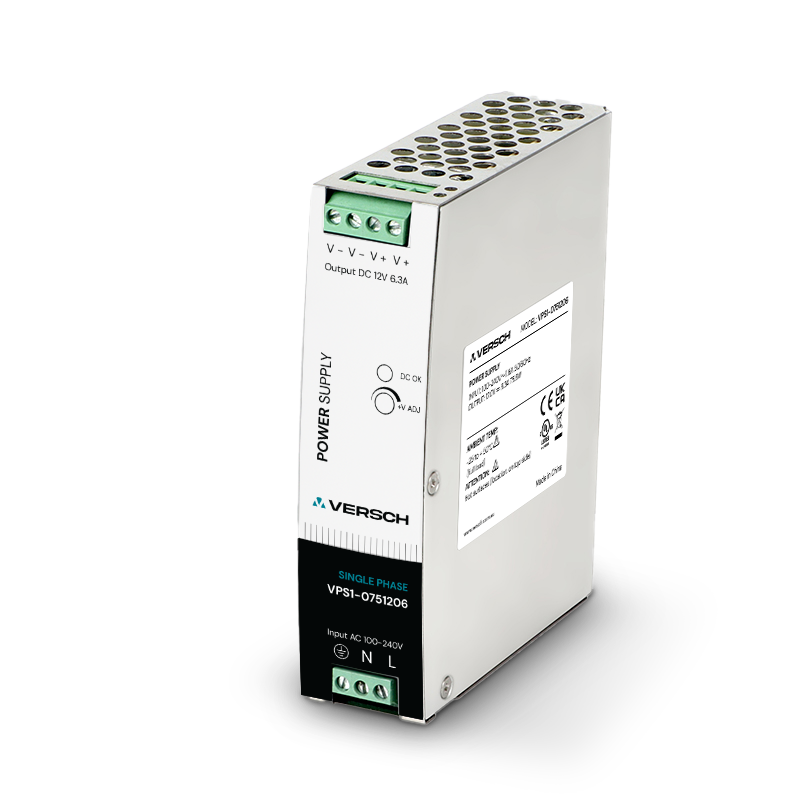

VPS1-0751206
DC Voltage: 12V
Rated Current: 6.3A
Rated Power (Max): 75.6W
VPS1-0752403
DC Voltage: 24V
Rated Current: 3.2A
Rated Power (Max): 76.8W
VPS1-0754801
DC Voltage: 48V
Rated Current: 1.6A
Rated Power (Max) : 76.8W

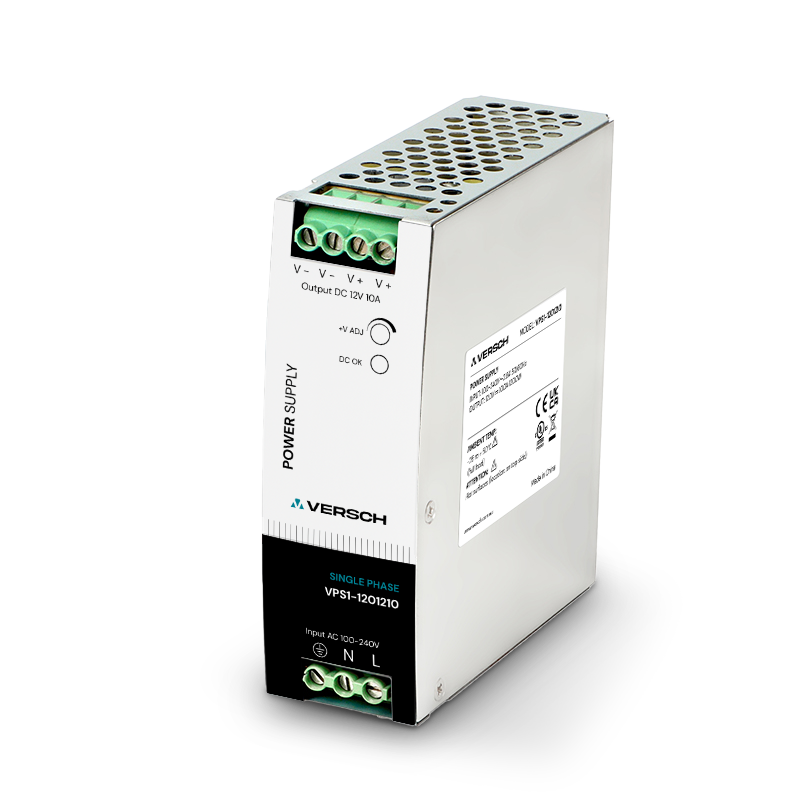

VPS1-1201210
DC Voltage: 12V
Rated Current: 10A
Rated Power (Max): 120W
VPS1-1502405
DC Voltage: 24V
Rated Current: 5A
Rated Power (Max) : 120W

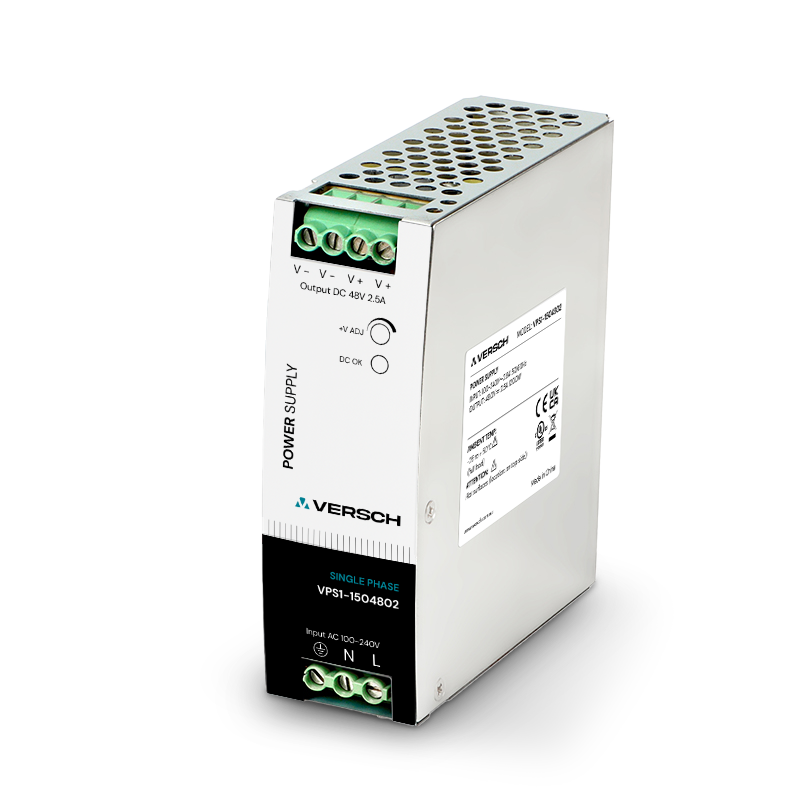

VPS1-1504802
DC Voltage: 48V
Rated Current: 2.5A
Rated Power (Max): 120W
VPS1-2402410
DC Voltage: 24V
Rated Current: 10A
Rated Power (Max): 240W
VPS1-2404805
DC Voltage: 48V
Rated Current: 5A
Rated Power (Max): 240W
Specify your build
Request a quick quote, and we’ll ensure the right VPS1 model keeps your power running without interruption.
