316 STAINLESS STEEL Electrical Enclosures
Essential Enclosures. Built to Standard

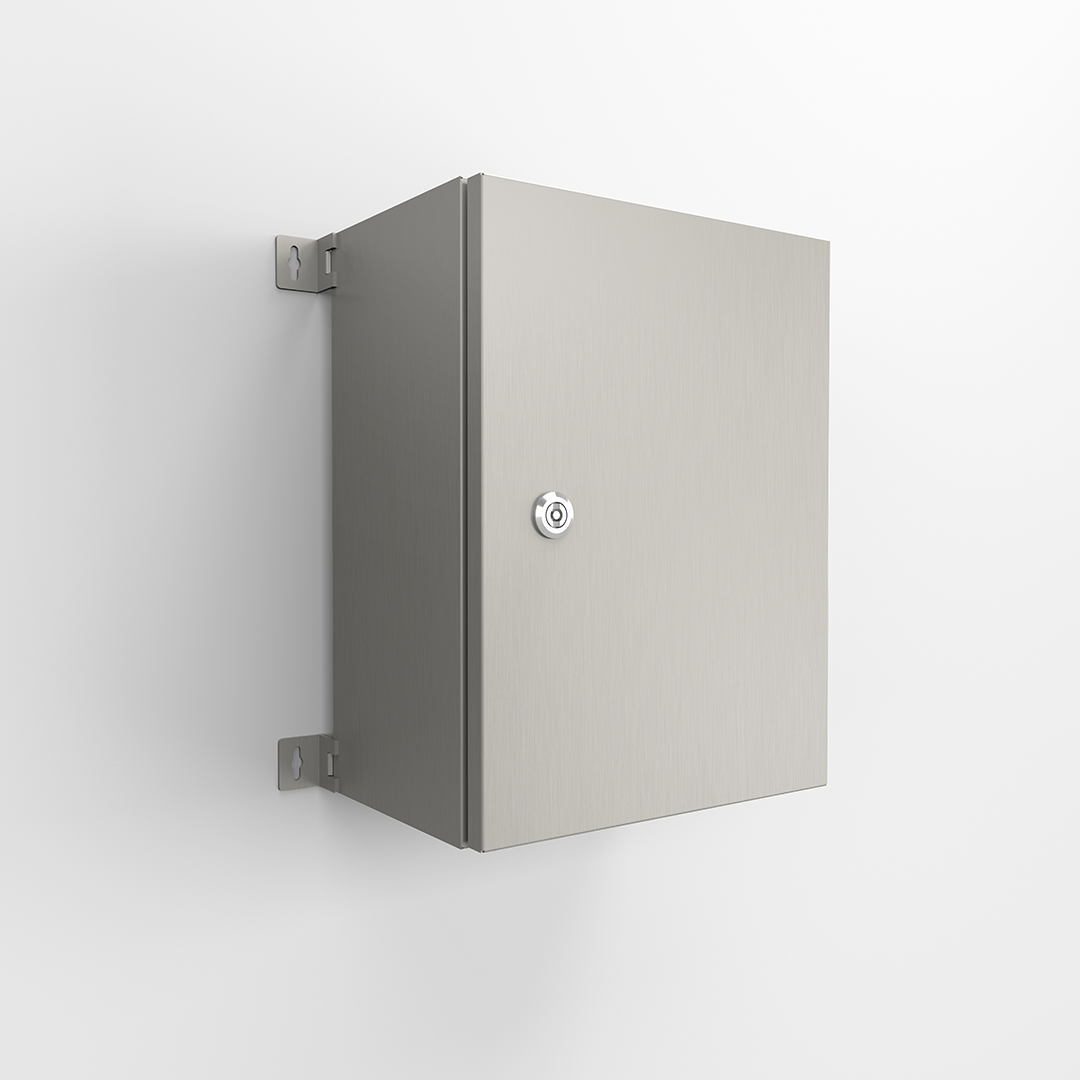

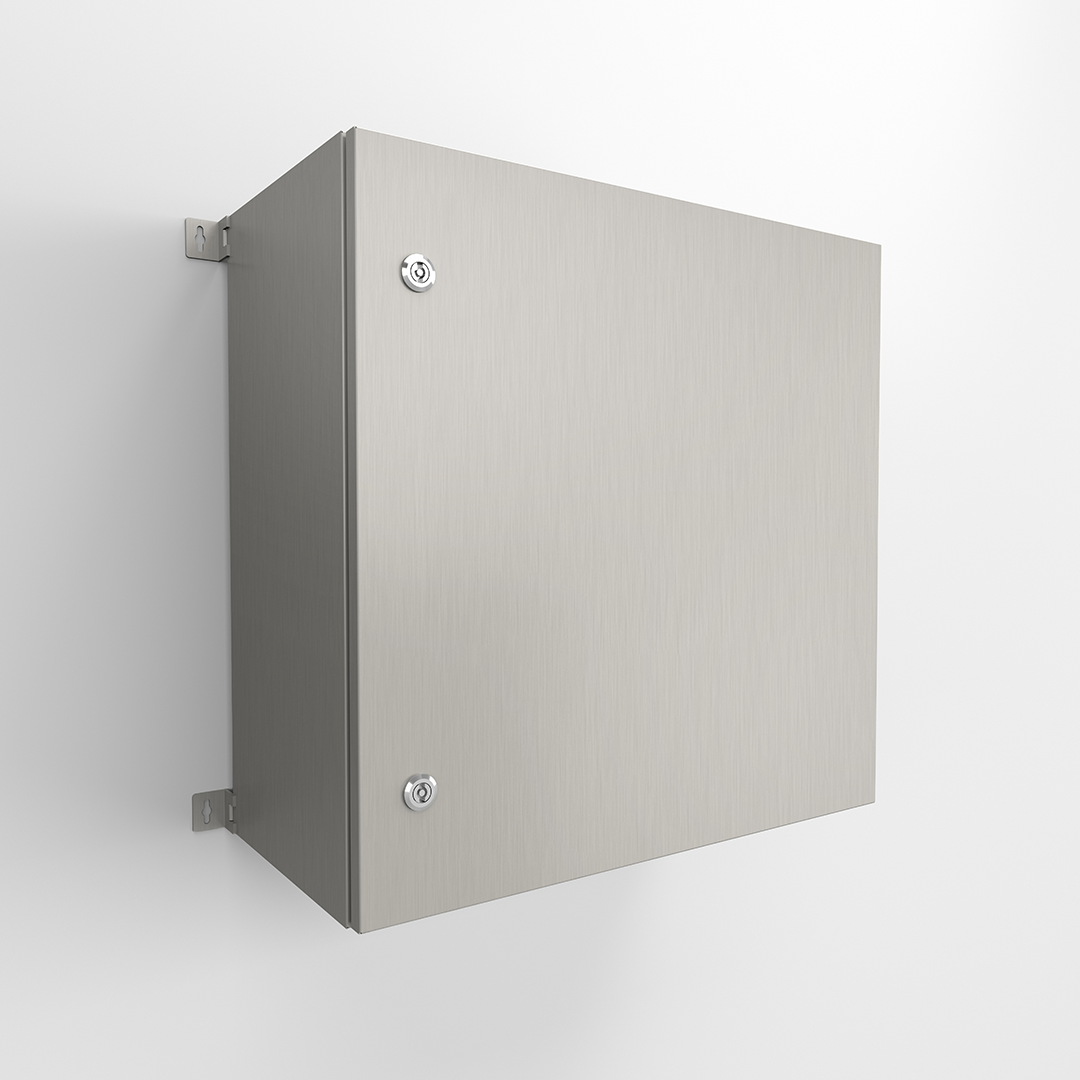

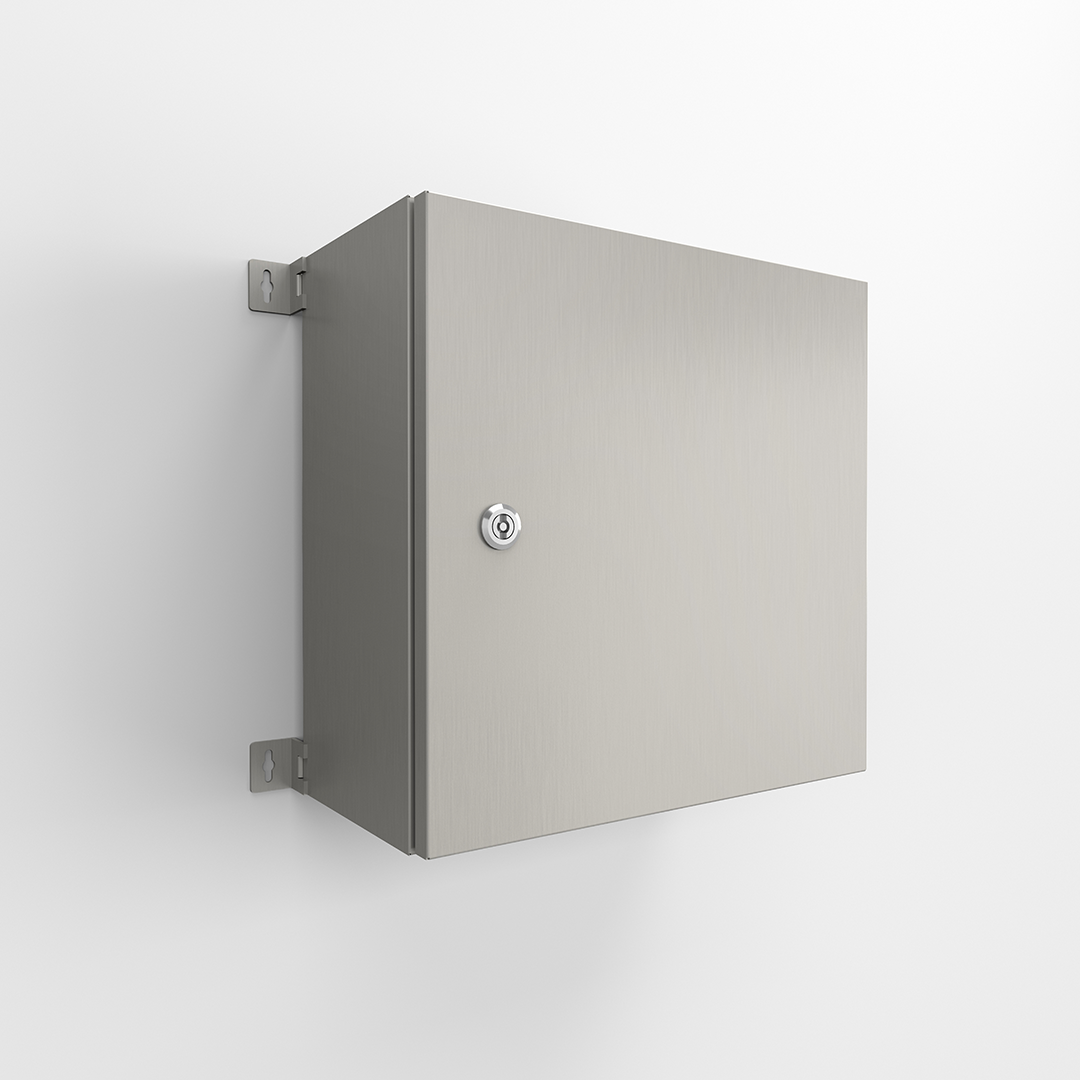

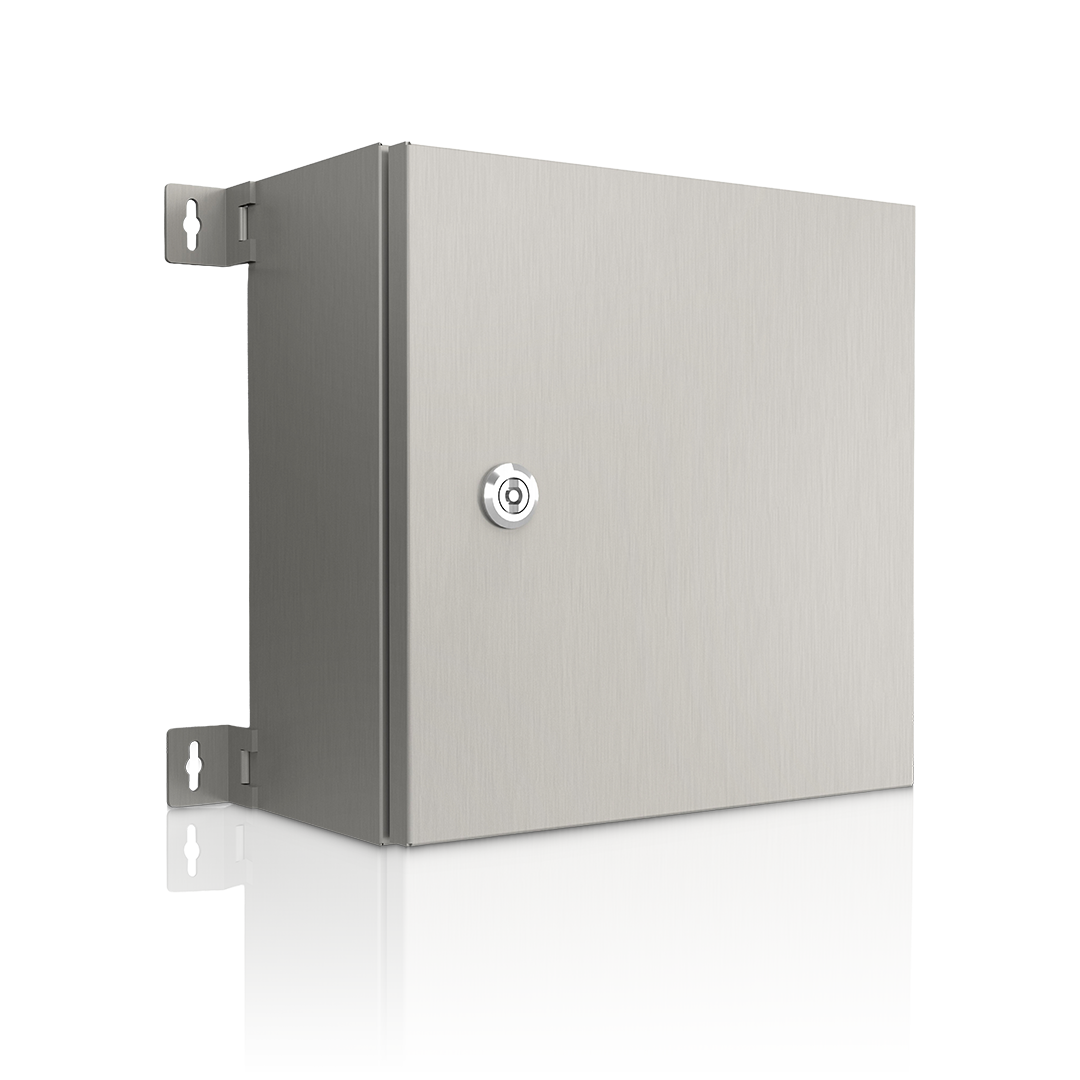

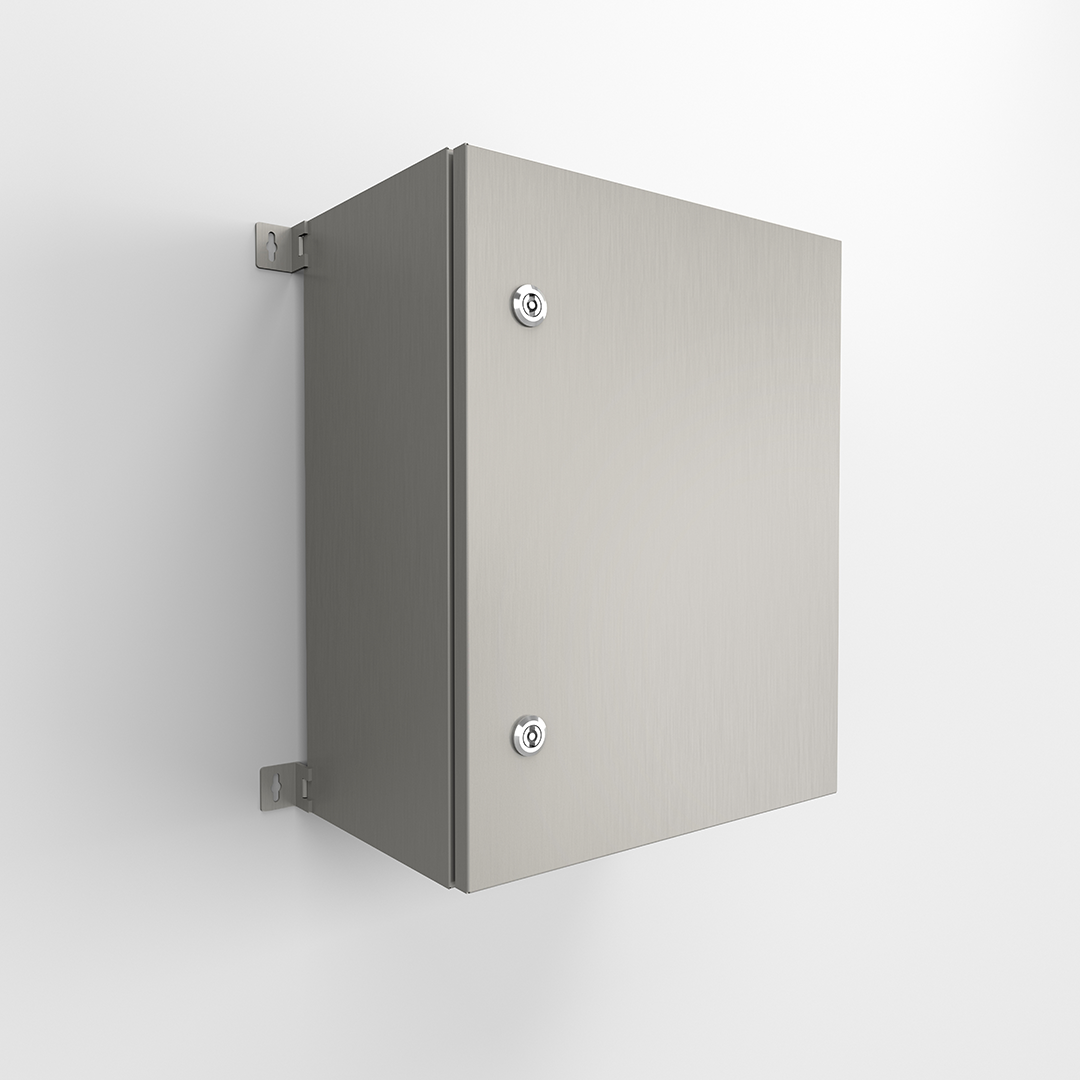

VERSCH 316 Stainless Steel Wall-Mount Electrical Enclosures deliver dependable IP66 IK10 protection for everyday electrical and control applications. Manufactured in 316L stainless steel with a continuous formed polyurethane gasket seal and secure quarter-turn locking — certified to IEC/EN 60529 and IEC/EN 62208.
Suitable for general industrial control, HVAC interfaces, pumps and irrigation, lighting and signage, and small PLC/IO applications.
Specifier Information
Key benefits
- IP66 protection for dust-tight and powerful water-jet environments
- Value-engineered construction
- 1.5 mm grade 316L stainless steel
- Continuous PU gasket for reliable sealing
- Universal wall-mounting brackets and gland plates
- Common sizes
Typical applications
Switching and protection · Small PLC/IO · Power supplies · Drives · HVAC interfaces · Pump and irrigation controls · Lighting and signage · General industrial control
- Body & door
- 316L stainless steel, fully welded body, removable door
- Finish
- No. 4B finish (Ra 0.4–0.8 μm)
- Gasket
- Polyurethane (continuous)
- Locks & hardware
- Quarter-turn latches (key insert); concealed hinges; earth studs to body and door
- Mounting plate
- Galvanised steel device plate
- Gland plate
- Removable gland plate
- Fixing
- External wall-mount brackets
- Ingress protection
- IP66 to IEC/EN 60529
- Impact resistance
- IK10 — suitable for general industrial use
- Empty enclosure standard
- IEC/EN 62208
Talk to our technical team
Let’s help you specify faster, better — for 24/7 reliability.
