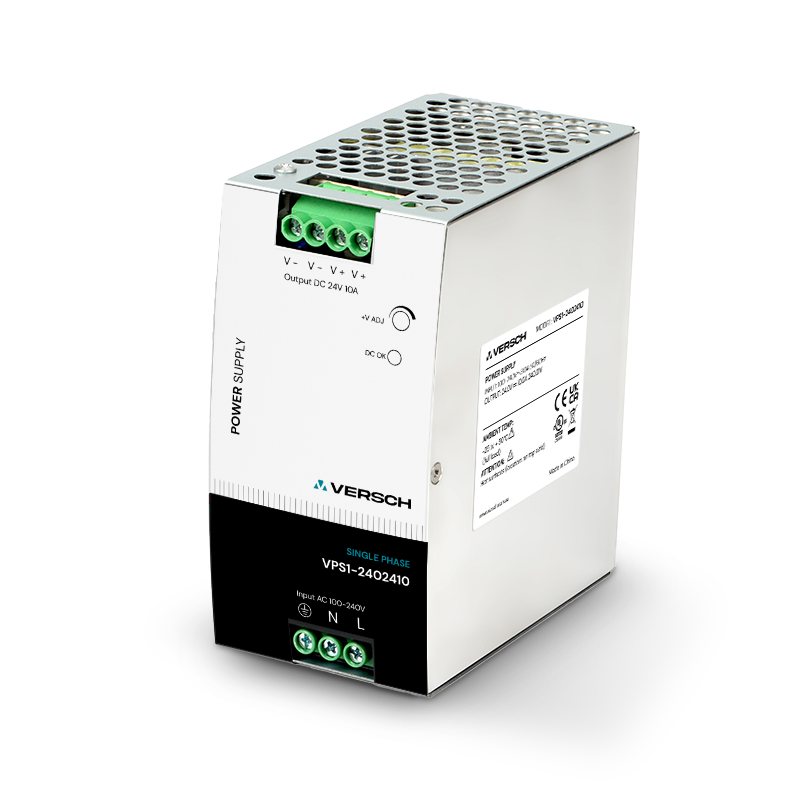

VPS1-2402410
24V DC / 10A 240W Single-phase DIN Rail Power Supply
Built for PLCs, I/O systems and industrial panels, the VPS1-2402410 delivers stable 24V DC at 10A with a power output of 240W for reliable operation in demanding environments.
| DC Voltage | 24V |
| Rated Current (Max) | 10A |
| Rated Power | 240W |
| Voltage Adjustment Range | 24V-28V |
| Efficiency | 87.00% |
| Input Voltage Range | 90–264VAC / 127–370VDC [DC input by connecting AC/L(+), AC/N(-)] |
| Ripple & Noise (Max) | ≤150mVp-p |
| Hold-up time | 16ms (230V / 50Hz full load), 12ms (115V / 60Hz full load) |
| Inrush current | 20A/115VAC, 35A/230VAC |
| Over Voltage Protection | 29 ~ 33V |
| Protection Type | Shut Down O/P Voltage, Re-Power On To Recover |
| Working Temperature | –20°C to +70°C |
| MTBF | 200,000 hrs min. MIL-HDBK-217F (25°C) |
| Status indicator | Green LED output (DC OK, if equipped) |
| Application suitability | Built for PLCs, relays, sensors, and 24V control logic |
| EMC compliance | UL508, BS/EN62368-1 |
| INPUT | ||
| Rated Input (Certified Voltage) | 100–240VAC (certified) | |
| Nominal Input Voltage Range | 90~264VAC or 127–370VDC [DC input by connecting AC/L(+), AC/N(–)] | |
| Frequency Range | 47~63Hz | |
| Efficiency | 87.00% | |
| Power Factor | >0.98 / 115VAC at full load, >0.95 / 230VAC at full load | |
| AC Current | 2.5A / 115VAC, 1.3A / 230VAC | |
| Inrush Current | 20A / 115VAC, 35A / 230VAC | |
| Leakage Current | <1mA / 240VAC | |
| OUTPUT | ||
| Ripple & Noise (Max.) | 150mVp-p | |
| Voltage Tolerance | ±2.0% | |
| Line Regulation | ±0.5% | |
| Load Regulation | ±1.0% | |
| Setup, Rise Time | 1500ms / 100ms (115V / 60Hz full load), 3000ms / 100ms (230V / 50Hz full load) | |
| Hold Up Time | 16ms (230V / 50Hz full load), 12ms (115V / 60Hz full load) | |
| PROTECTION | ||
| Over Load | 105 ~ 130% rated output power | |
| Protection Type: Hiccup Mode – Recovers automatically after fault condition is removed | ||
| Over Voltage | 29 ~ 33V | |
| Over Temperature | Protection Type: Shut Down O/P Voltage, Re-Power On To Recover | |
| MECHANICAL | ||
| Dimensions | 125 × 63 × 113.5 mm | |
| Mounting | DIN rail mount (TS35, EN 60715 compliant) | |
| Enclosure | IP20-rated metal case | |
| Terminal Block | 3-pole input (L/N/FG), 4-pole output (+V/–V) | |
| LED | Green (DC OK) [if equipped] | |
| Weight | 1.0 kg | |
| Working Temperature | -20 ~ +70°C |
| Working Humidity | 20 ~ 95% RH non-condensing |
| Storage Temperature | -40 ~ +85°C, 10 ~ 95% RH |
| Storage Humidity | 10 ~ 95% RH |
| MTBF | 200,000 Hrs Min. MIL-HDBK-217F (25°C) |
| Safety Standards | UL508, BS/EN62368-1 |
| Withstand Voltage | I/P–O/P: 3KVAC, I/P–FG: 2KVAC, O/P–FG: 0.5KVAC |
| Isolation Resistance | I/P–O/P, I/P–FG, O/P–FG: >100M Ohms / 500VDC / 25°C / 70% RH |
| EMC Emission | Compliance to BS EN/EN55032, BS EN/EN61000-3-2, -3 |
| EMC Immunity | Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, BS EN/EN61000-6-2 (BS EN/EN50082-2) |
